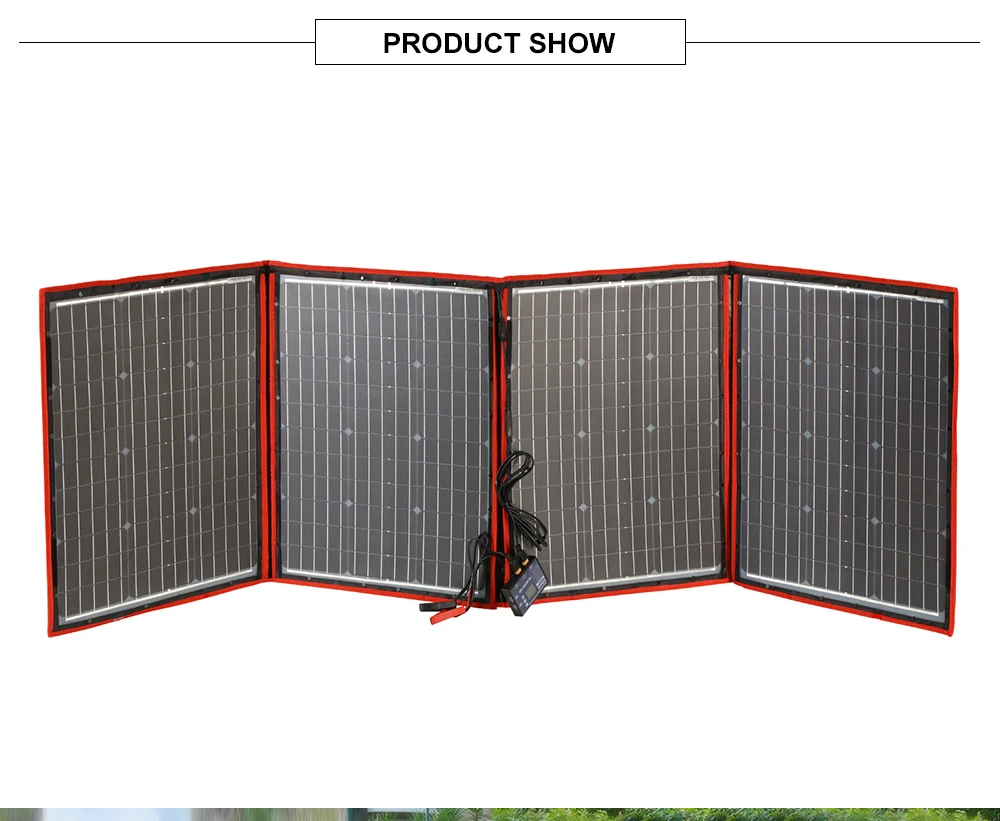

Dokio Flexible Foldable 200W(50Wx4) Mono Solar Panel High Power Portable Solar Panel For RV&Boat&Travel Solar Panel China
Dokio Flexible Foldable 200W(50Wx4) Mono Solar Panel High...
SPECIFICATIONS
net weight: 5.3
is_customized: Yes
Vmpp: 18.00V/36V
VOC: 22.50V/45V
Type: Solar Panel
Size: 700*500*25mm
Quality: TUV Certified
Origin: Mainland China
Number of Panels: 1
Number of Cells: 36
More data: Please visit the details
Model Number: FFSP-200M/36VFFSP-220M
Max. Power: 200W
Material: Top grade raw materials
Material: Monocrystalline Silicon
I sc: 12.47A/6.24A
I mpp: 12.22A/6.11A
Foldable Solar Panel: Yes
Flexible Solar Panel: Yes
Factory Outlet: Yes
Certification: CE
Brand Name: DOKIO
Model FFSP-220M
Solar panel handle design, easy to carry. Folding design to save space.
Adopt High efficiency with quality single crystal silicon silicon materials for long term output stability.
Suitable for camping, outdoor sports, hiking and other scenarios.

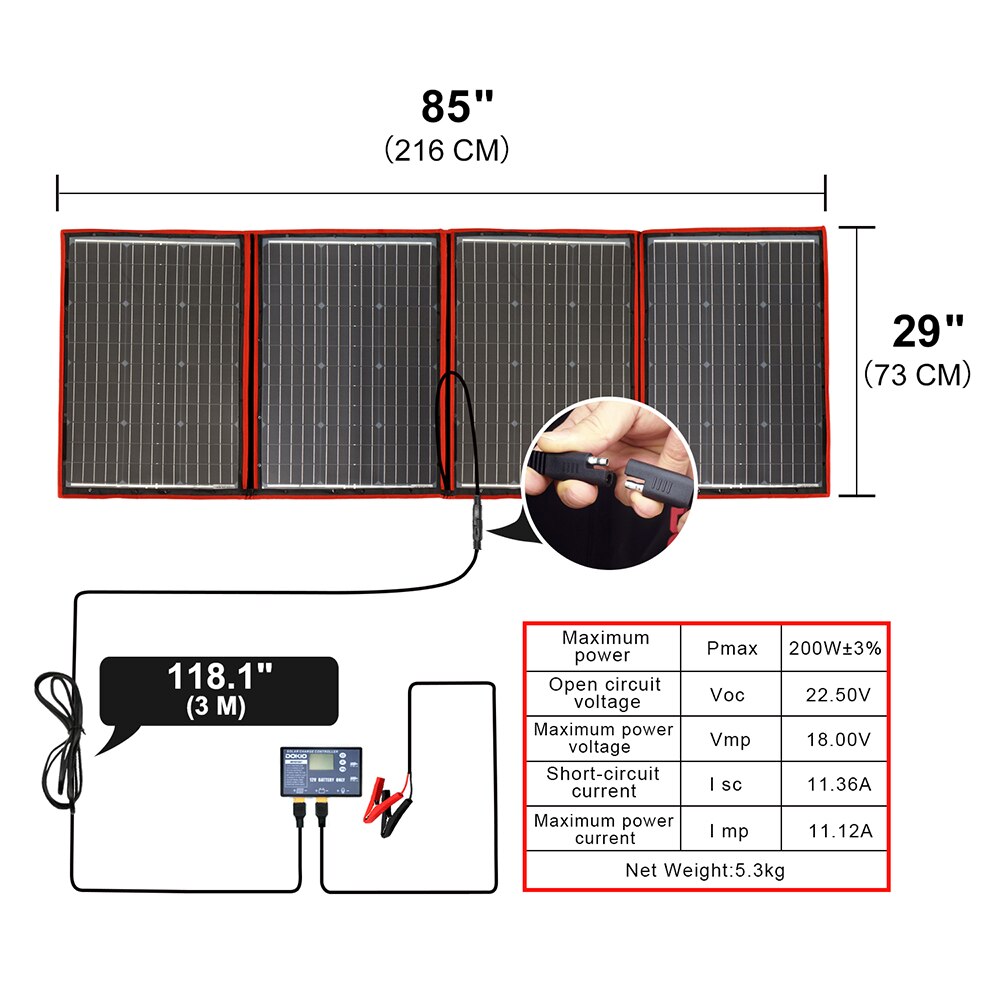

Performance Data
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

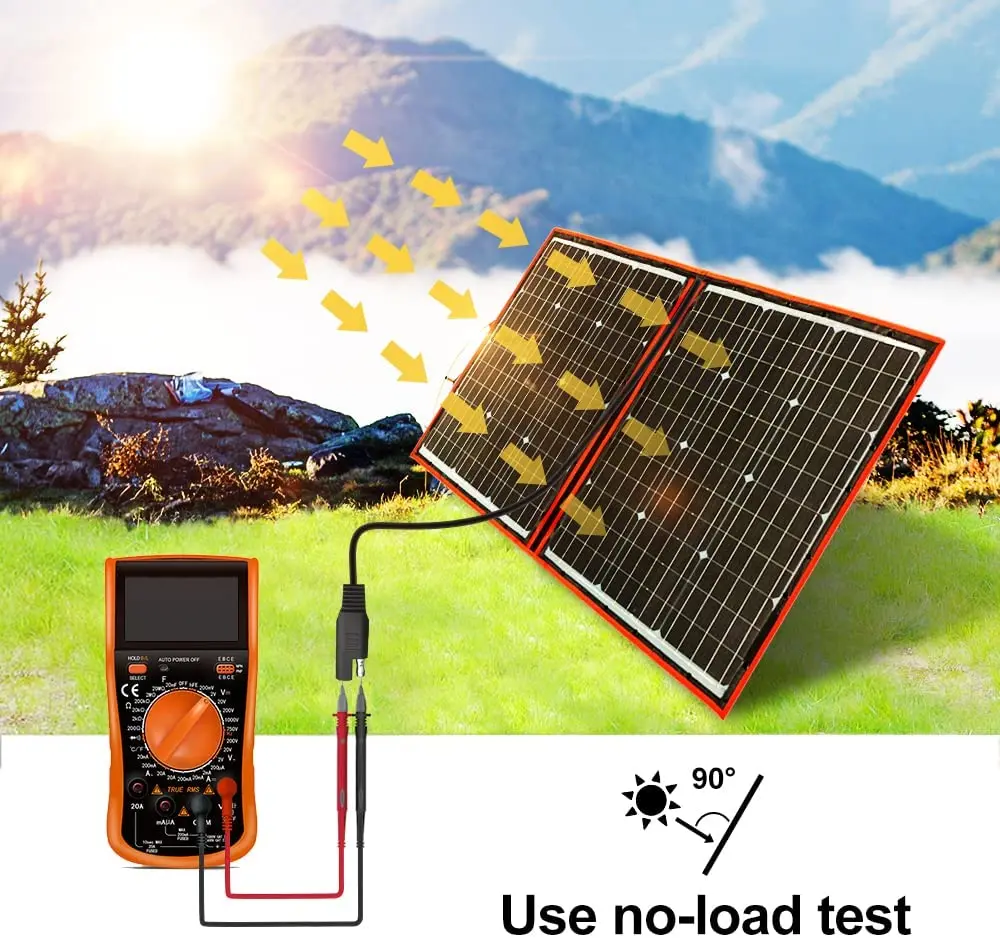

How to test the power of a solar panel?
Without connecting any load, use a multimeter to directly test the SAE cable in the middle of the solar panel.
Reference video

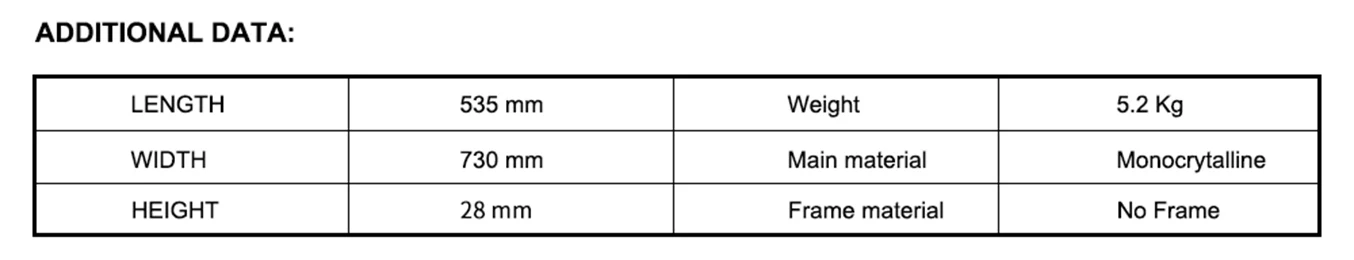

Additional Date
Material:Monocrystalline silicon

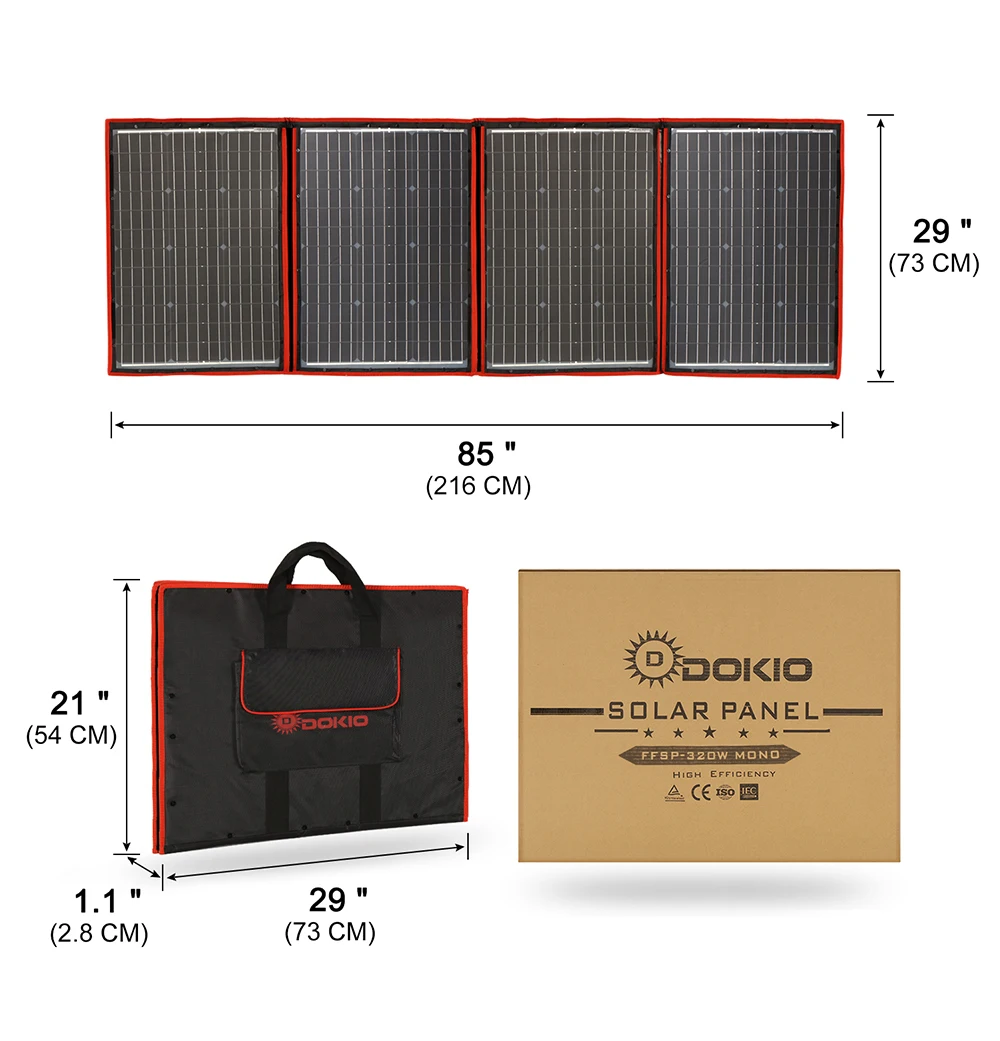

Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm
(The size is manually measured and there is a certain error.）

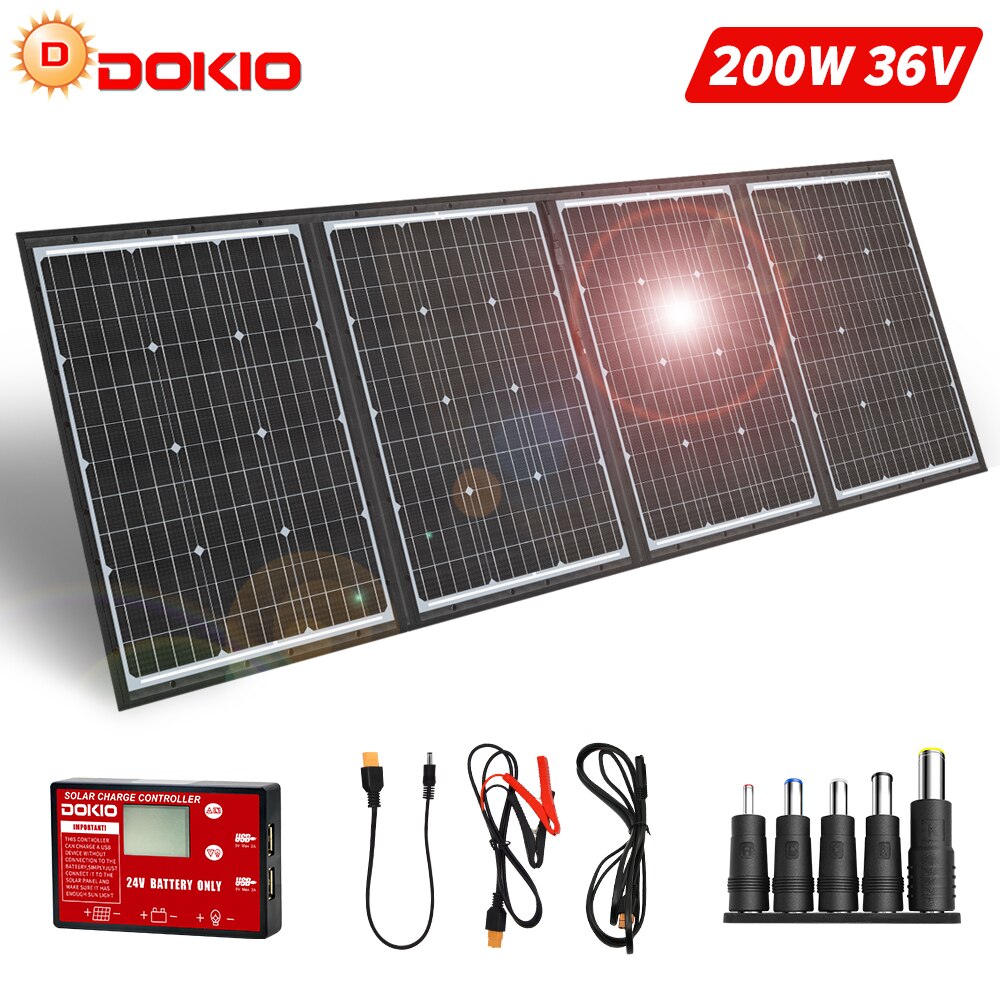

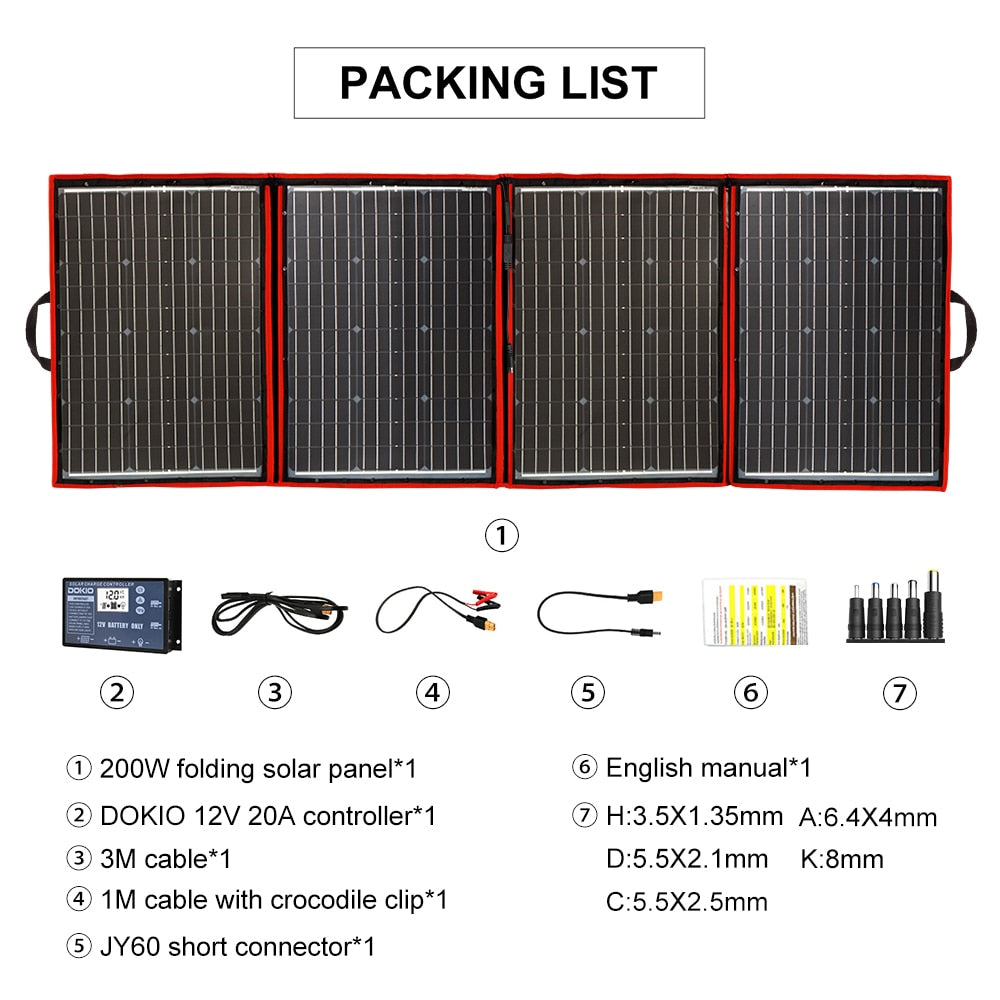

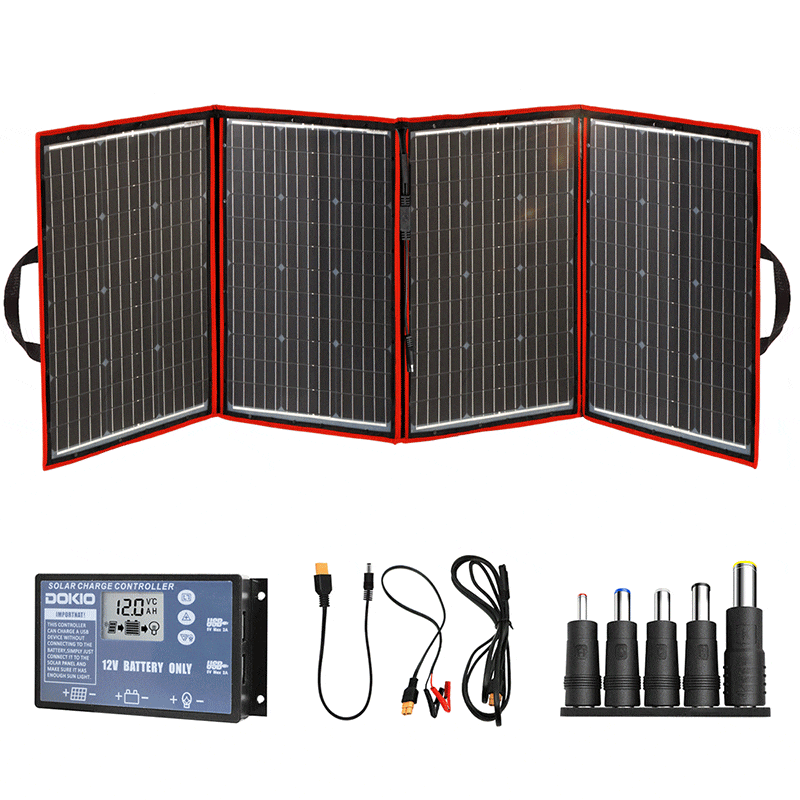

Package List
1*Flexible Foldble Solar Panel

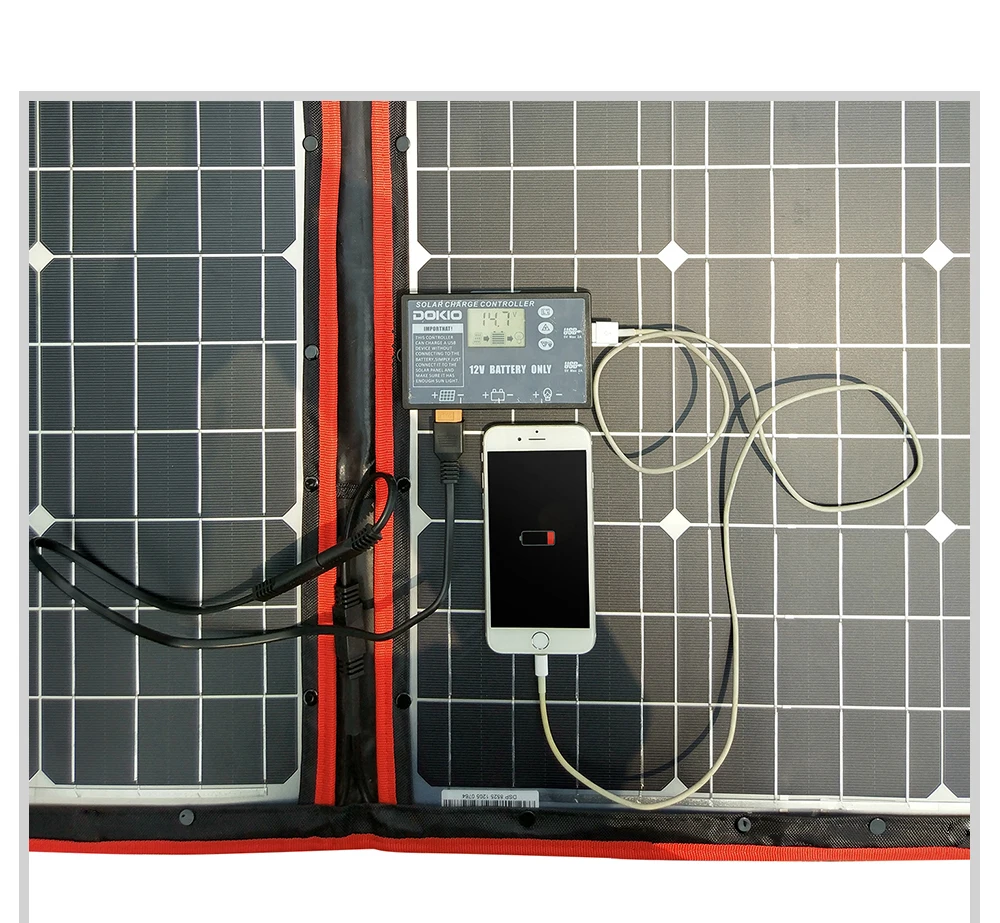

1*3M wire,1*English User Manual,1*PWM Controller

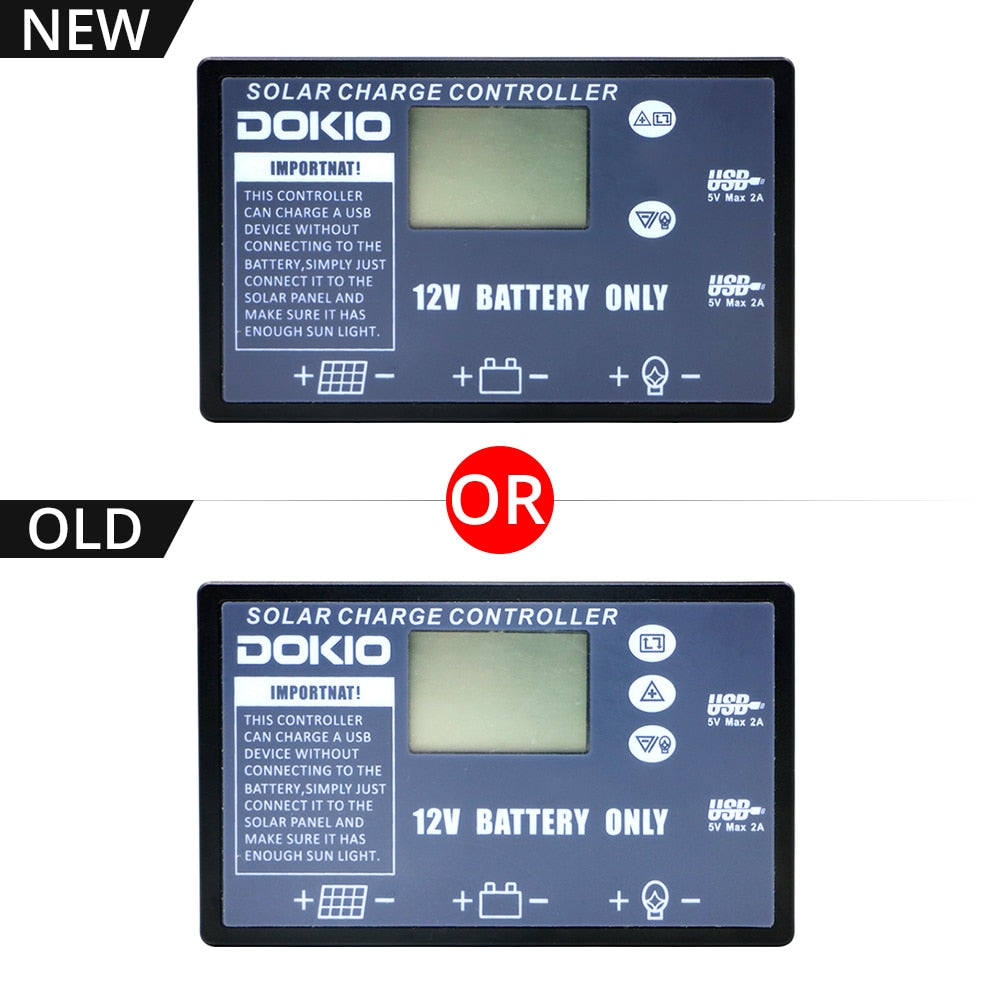

Compared to other older controllers on AliExpress, this controller uses the XT60 port can reduce power loss.
(controller support 12V lead-acid,lithium ions and LiFePO4 battries.)

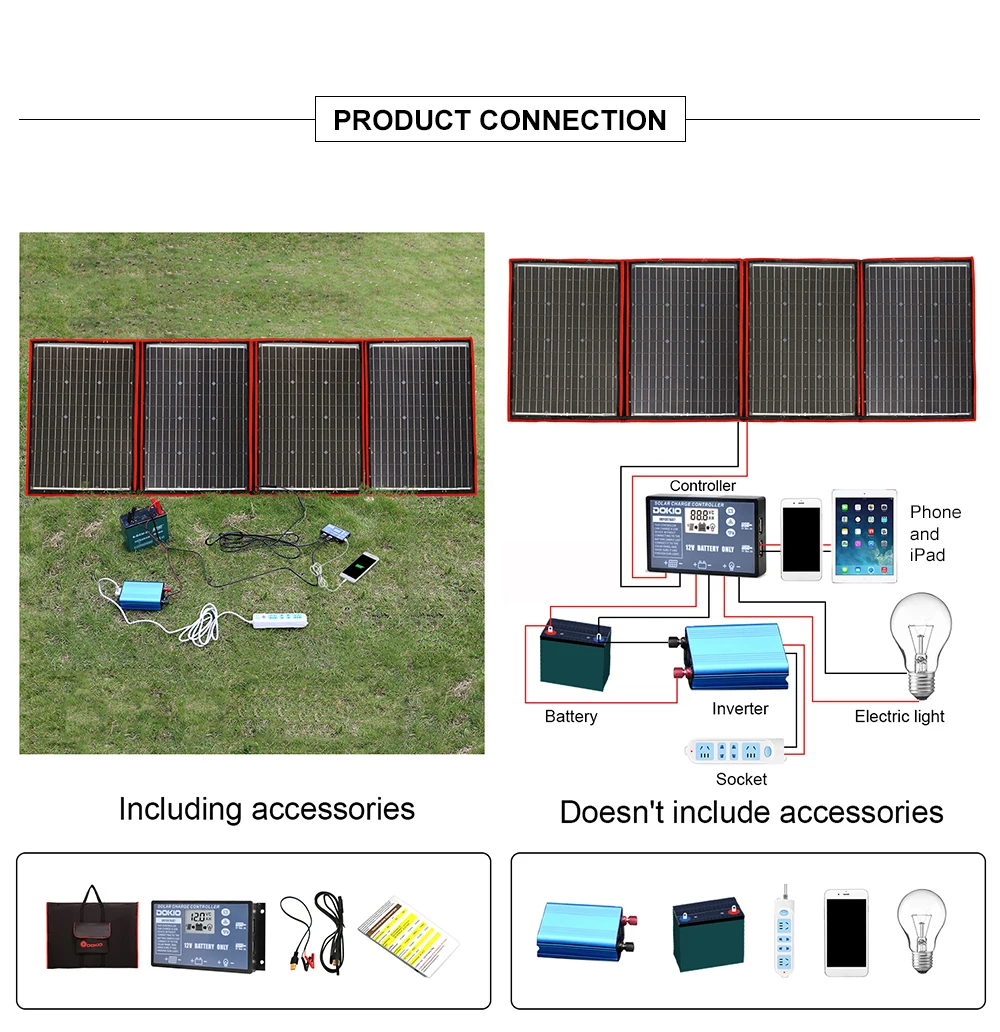

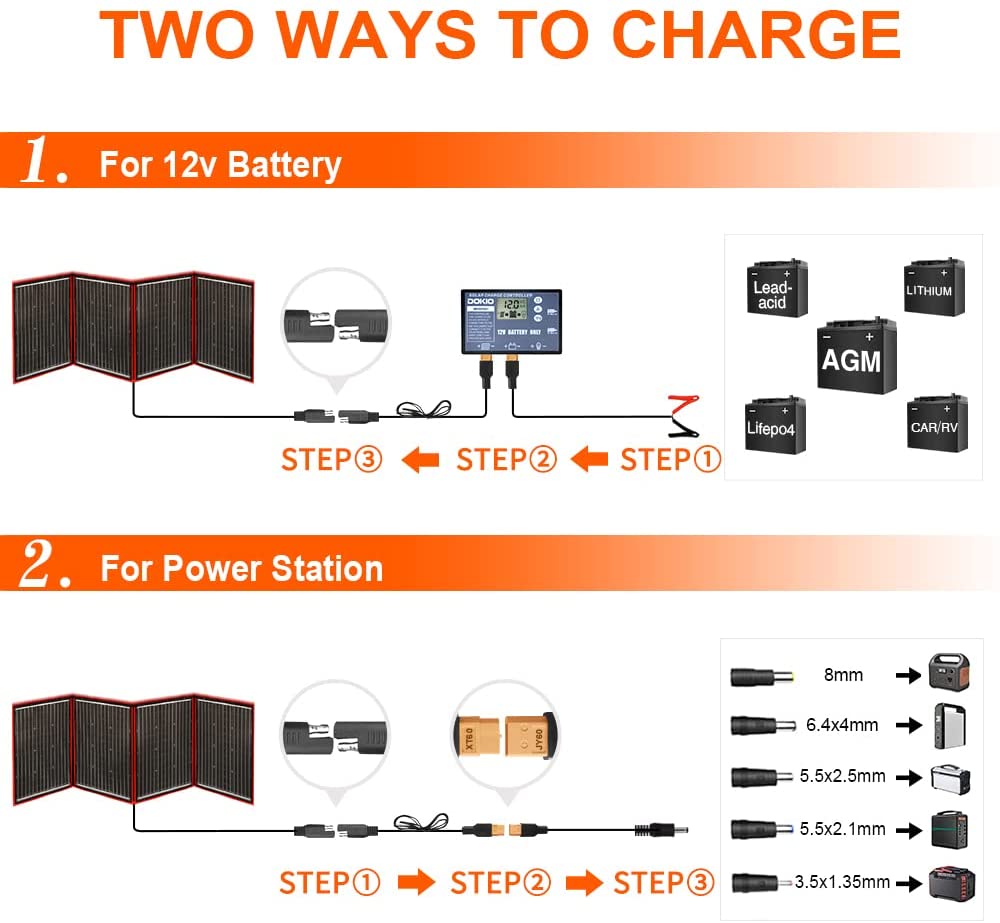

How to use the solar panel
Connection sequence for charging the power station:
①Soalr Panel→ ③3M SAE Cable → ⑤JY60 → ⑦DC Connector →Power Station(Need to purchase by yourself)
(Note: The DC connector must match the solar charging port of the power station)
Connection sequence for charging the battery:
Battery(Need to purchase by yourself) → ④Crocodile clip → ②Controller → ③3M SAE Cable → ①Solar Panel
That's difficult to understand? Wacthing Video
Prouduct Detail
The surface is made of ETFE material, which has the characteristics of corrosion resistance, high temperature resistance, High stain resistance and high light transmittance etc.
The solar panel uses Insulating resin as the substrate Compared with the aluminum substrate, it has better thermal insulation, stronger insulation, harder hardness, less deformation and lighter weight.
About US

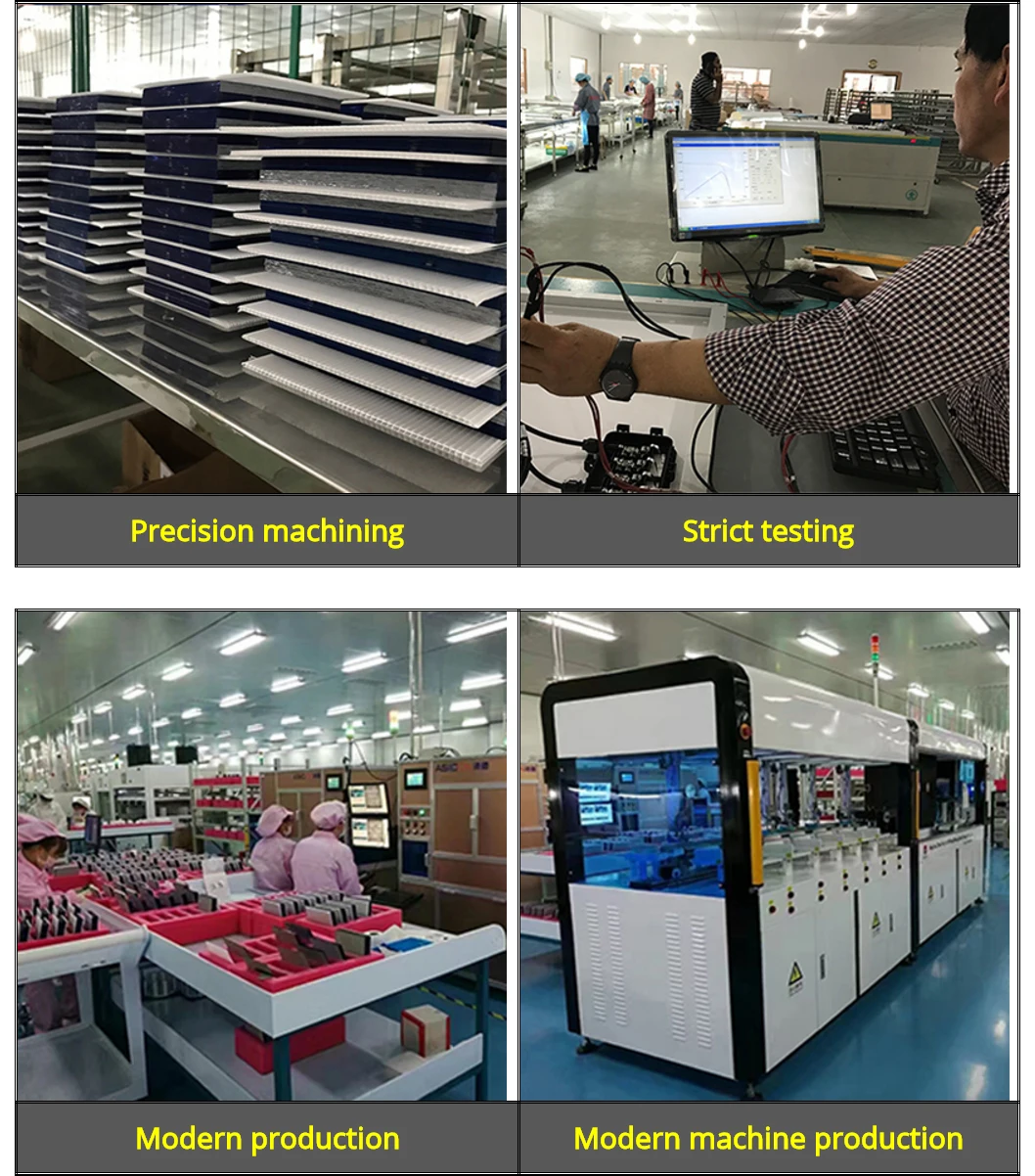

We are specialized in producing solar panels manufacturers, have more than 10 years of production experience and customer experience, a good reputation and a wide range of customer groups.
R&D team with key technologies, international certification, accept mass customization, processing!
All products are certified to ISO, IEC, CE, TUV
