USB C Laptop Docking Station HDMI VGA USB PD LAN RJ45 SD Hub Adapter for Laptop Macbook HP DELL XPS Surface Lenovo ThinkPad Dock

USB C Laptop Docking Station HDMI VGA USB...

Sale price$66.98 Regular price$74.99

SPECIFICATIONS

Width: 8cm

VGA: Max Support 1080P

USB C PD: USB C Power Delivery

USB C Data: High-Speed Data Transfer

USB: 2*USB 3.0 + 1*USB 2.0

Type: Laptop Docking Stations

Package: Yes

Origin: Mainland China

Model Number: SW-019

Material: Aluminum

Length: 28cm

HDMI: Max Support 4K, Downward compatible With 1080P 720P etc.

Ethernet Port: Ethernet LAN RJ45 Network Card Adapter

Certification: CE,FCC,RoHS

Card Slot: SD, Micro SD, TF Card Reader

Brand Name: pobod

Audio Port: DC 3.5mm Audio Port Jack

USB Type C Hub Adapter Laptop Docking Station HDMI VGA RJ45 Ethernet Gigabit Port PD SD For MacBook HP Compatible Thunderbolt 3

Product Description

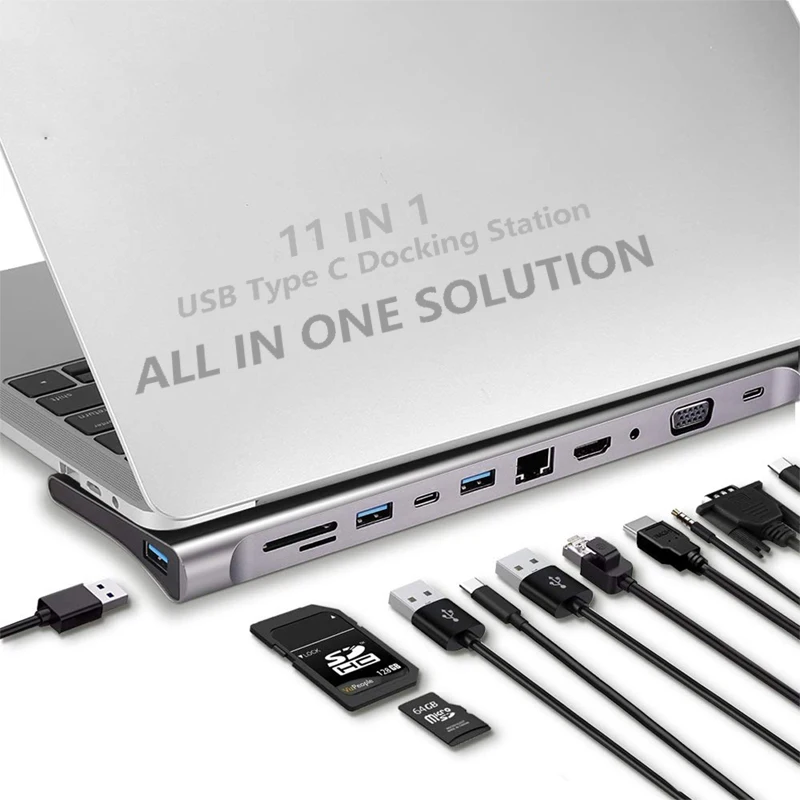

USB C Docking Station Specifications:

Color: Silver
Material: Aluminum alloy
Size: 250mm*80mm*(16mm, 8mm)/9.84*3.15*(0.62, 0.31)inch
Length of Cable: 290mm/11.42inch

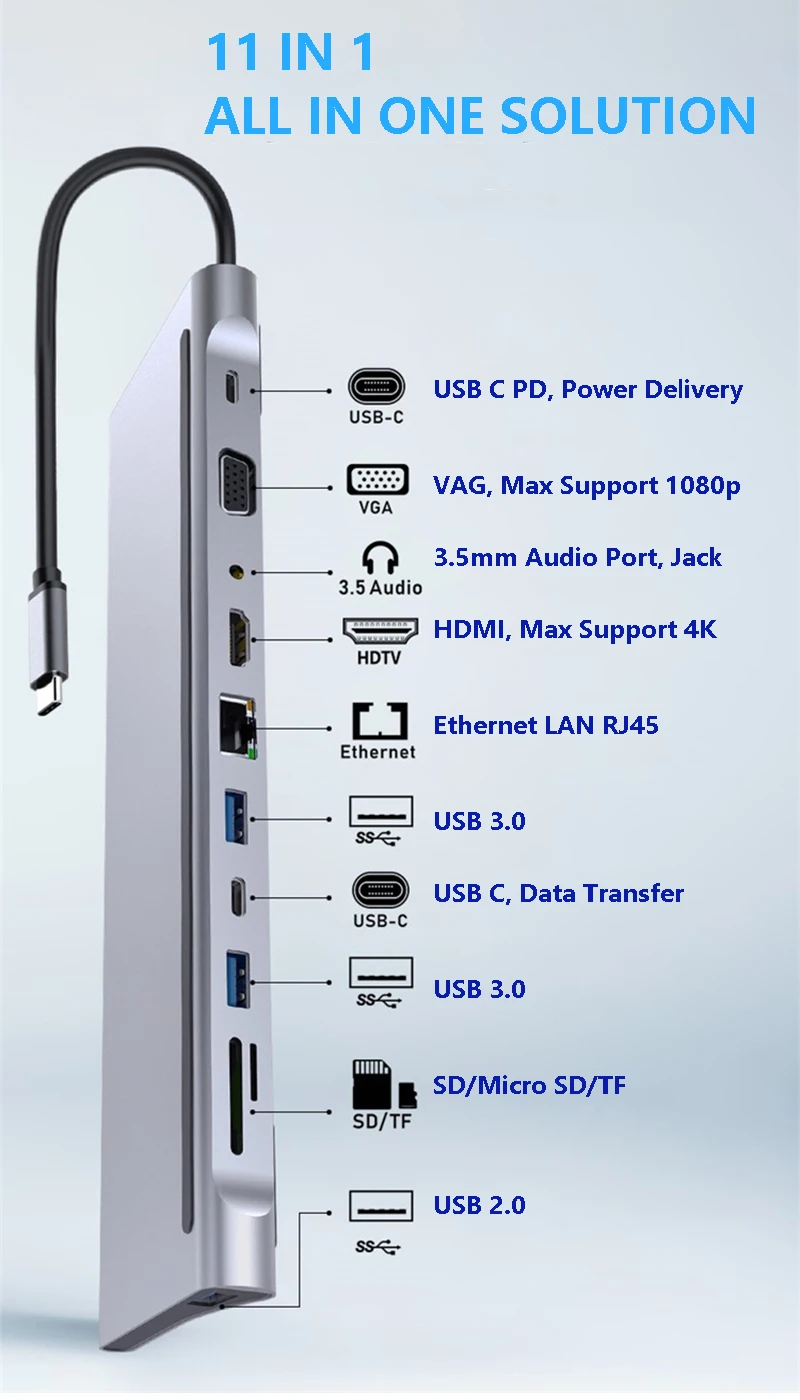

Interfaces: USB Type C male port
Port-1: USB 2.0, Type A Female Port
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, Not 1000Mbps
Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-9: DC 3.5mm Audio Jack Port
Port-10: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.
Port-11: USB Type C PD Charging Port

Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.
Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card

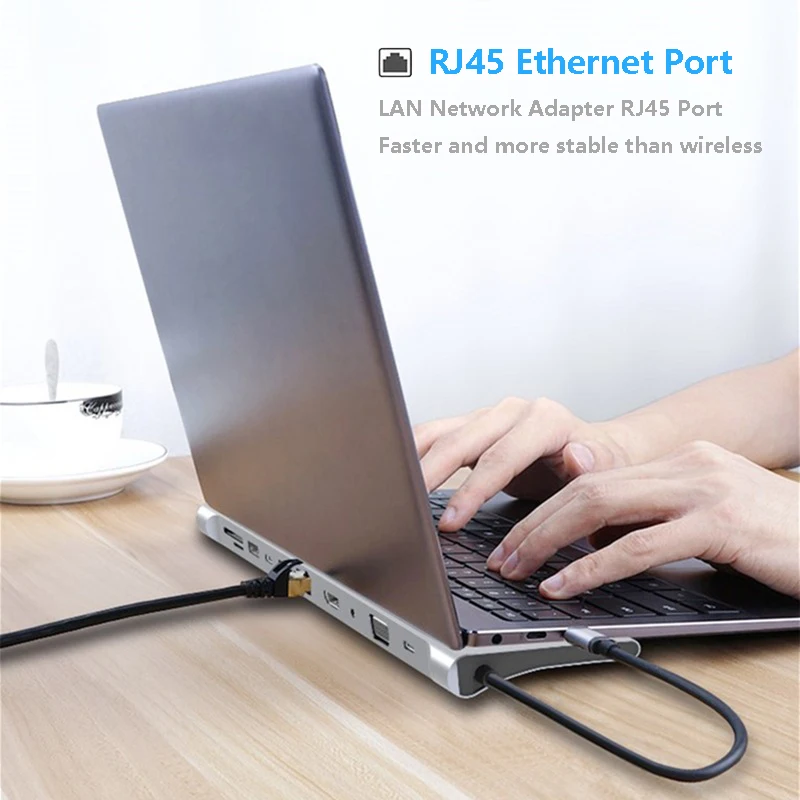

Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless
Function-4: Support USB C Power Delivery, Keep laptop the best performance
Function-5: Extend a Larger Screen via HDMI or VGA
Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840x2160 30Hz
Function-7: HDMI and VGA output simultaneously
Function-8: HDMI and VGA support Extended Mode and Mirror Mode


Compatible:

* For MacBook 2018/2017/2016, MackBook Pro 2018/2017, iPad Pro 2018/2020
* For Huawei Matebook X, Huawei Mate20/Mate 20 Pro
* For Lenovo XiaoXin Pro 13'' 2019 2020
* For Lenovo ThinkPad T490, T490s, T14 (14")Intel, T480, T480s, T580, T590, T15 (15")Intel
* For Lenovo ThinkPad P43s (14"), P14s (14"), P15s (15")
* For Lenovo ThinkPad X280, X390, X13(13")Intel, X13 Yoga(13"), X380 Yoga(13")
* For Lenovo ThinkPad X1 Yoga Gen 3 (14"), X1 YOGA Gen 4 (14"), X1 Yoga Gen 5 (14")
* For Lenovo ThinkPad X1 Carbon Gen 6 (14"), X1 Carbon Gen 7 (14"), X1 Carbon Gen 8 (14")
* For Lenovo ThinkPad L380, L480, L580, L490, L590, L13 Yoga(13")
* For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300
* For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1
* For Dell XPS 15 9500
* For Dell XPS 15 9575 2-in-1
* For Dell Latitude 7400 2-in-1 14"
* For Dell Latitude 7200 2-in-1 12", Latitude 7210 2-in-1 12"
* For Huawei MateBook 13, XPro, E
* For Huawei HONOR MagicBook Pro
* For XiaoMi Air 12.5", 13.3", Pro 15.6"
* For ChromeBook Pixels
* For Teclast F6 Plus
* updating ...


Note:
1. If your laptop isn't in the compatilbe list, You MUST make sure the host USB-C port on your laptop is full-featured USB-C.
Full-Featured USB-C: USB3.0/USB 3.1 + DP(Display Port) + PD(Power Delivery).

If you are not sure whether this docking station is compatible with your laptop,
please tell me the model of your laptop, I am pleasure to check the compatible.

2. You MUST make sure the host USB-C port is on the left side of your laptop.
Because the length of cable is 290mm/11.42inch, or you don't  want to place this docking station under your laptop.
Or you can take a look the other product: 11IN1(https://www.aliexpress.com/item/4000977727302.html)

3. Support HDMI and VGA output simultaneously work with Mirror Mode or Extended Mode.
Extended Mode work like this:
The laptop's screen and this docking station screens(VGA+HDMI) show the different content,
but this USB-C docking station's VGA and HDMI show the same content.
If you want to extend 2 monitors to show different contents, Please take a look at the other product: 12IN1(https://www.aliexpress.com/item/4001324669469.html)

4. 4Kx2K@30Hz work when HDMI is connecting and VGA is disconnecting.
